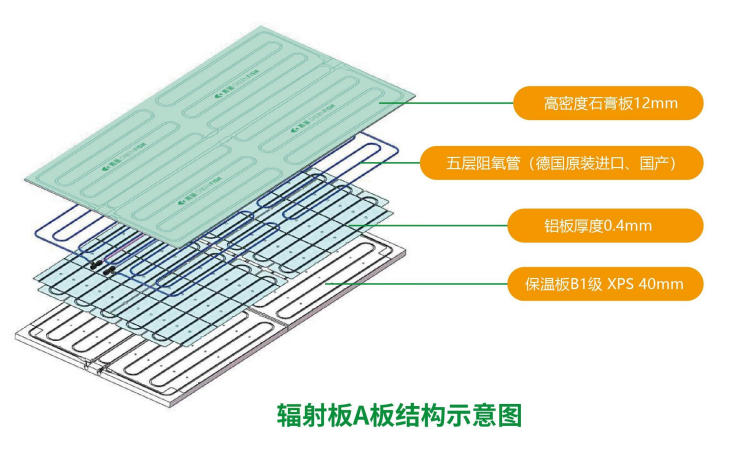

1. Introduction to ICS radiation plate-A board:

　　Green fish Radiation Panel, ICS System - the industry-leading radiation panel intelligent manufacturing expert, setting a quality benchmark with cutting-edge technology.

　　The product adopts a patented glue-free process, which is environmentally friendly and healthy, has strong cold volume and excellent energy efficiency; has anti-mildew and antibacterial properties, is resistant to moisture and durable, and is as long as new as new; it has innovative low-temperature anti-condensation technology to eliminate condensation problems and adapt to diverse environmental needs.

　　With its excellent performance and reliable technology, Green fish has become a preferred solution in the fields of medical care, data center, high-end business, etc., creating a new model of comfort and energy saving.

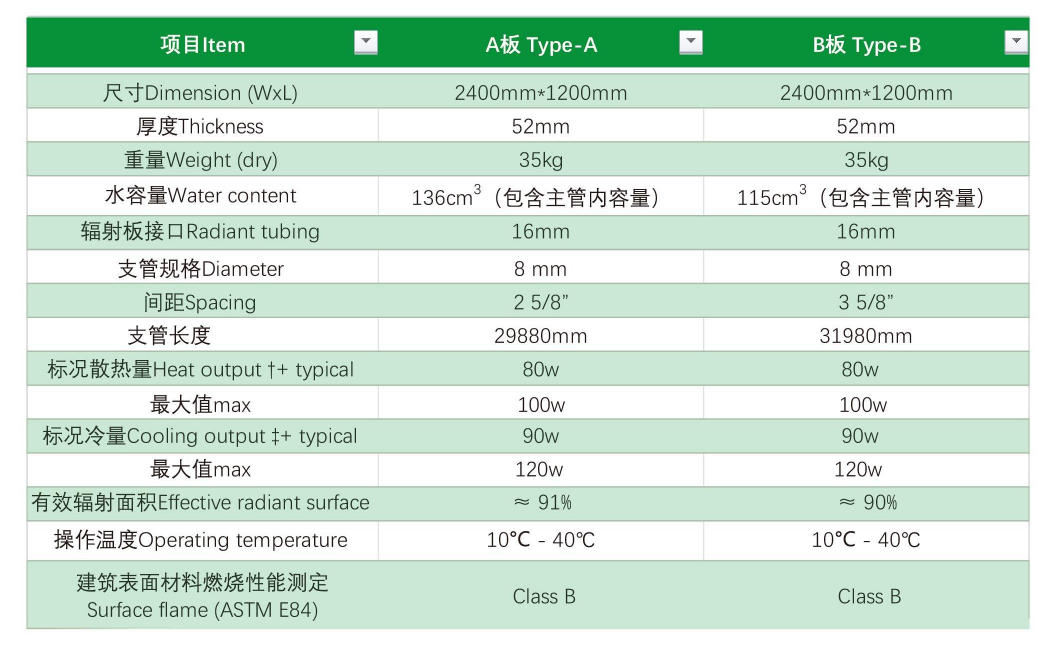

　　2. ICS radiation plate-A plate parameters:

　　3. Advantages of ICS radiation plate-A plate:

　　a. Large cooling capacity, under ICS System regulation, it can reach 90~120W/m2, which is about 40% higher than the general radiation plate.

　　b. Convenient installation, flexible layout, safe and reliable

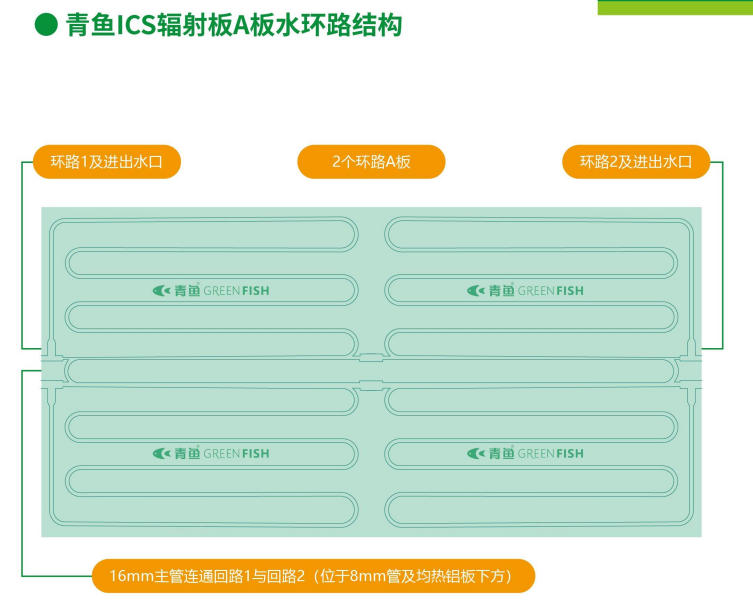

　　Built-in main pipe and three-way connection, the entire board connection can be seamlessly plugged in with direct head, and there is no need to install another main pipe outside the board, saving installation costs to the greatest extent;

　　The pipe opening position is flexible, and the entire plate can be seamlessly inserted in horizontal and vertical directions;

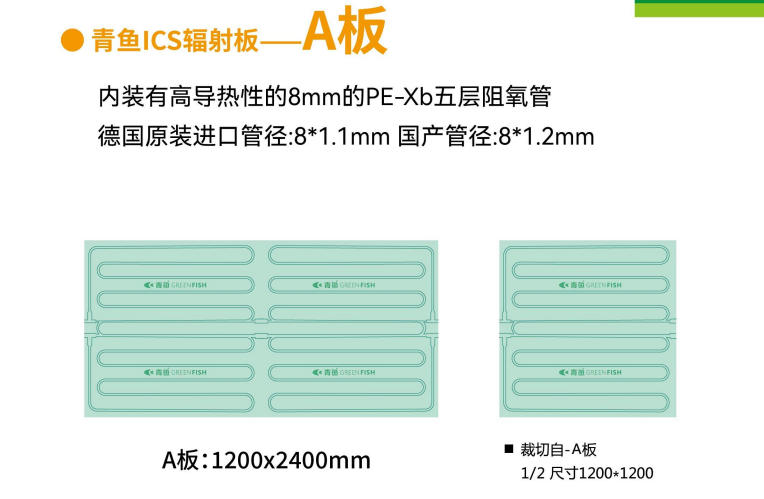

　　Flexible cutting, the minimum cut can be cut to 1200X600mm.

　　The entire board is connected, and there are no pipe fittings outside the board to avoid the risk of water leakage and ensure reliability to the greatest extent.

　　c. High compatibility with the ceiling of the ceiling of the interior decoration, the net distance between the water pipes in the board is 92mm, and it is recommended to have a maximum opening of 75mm.
