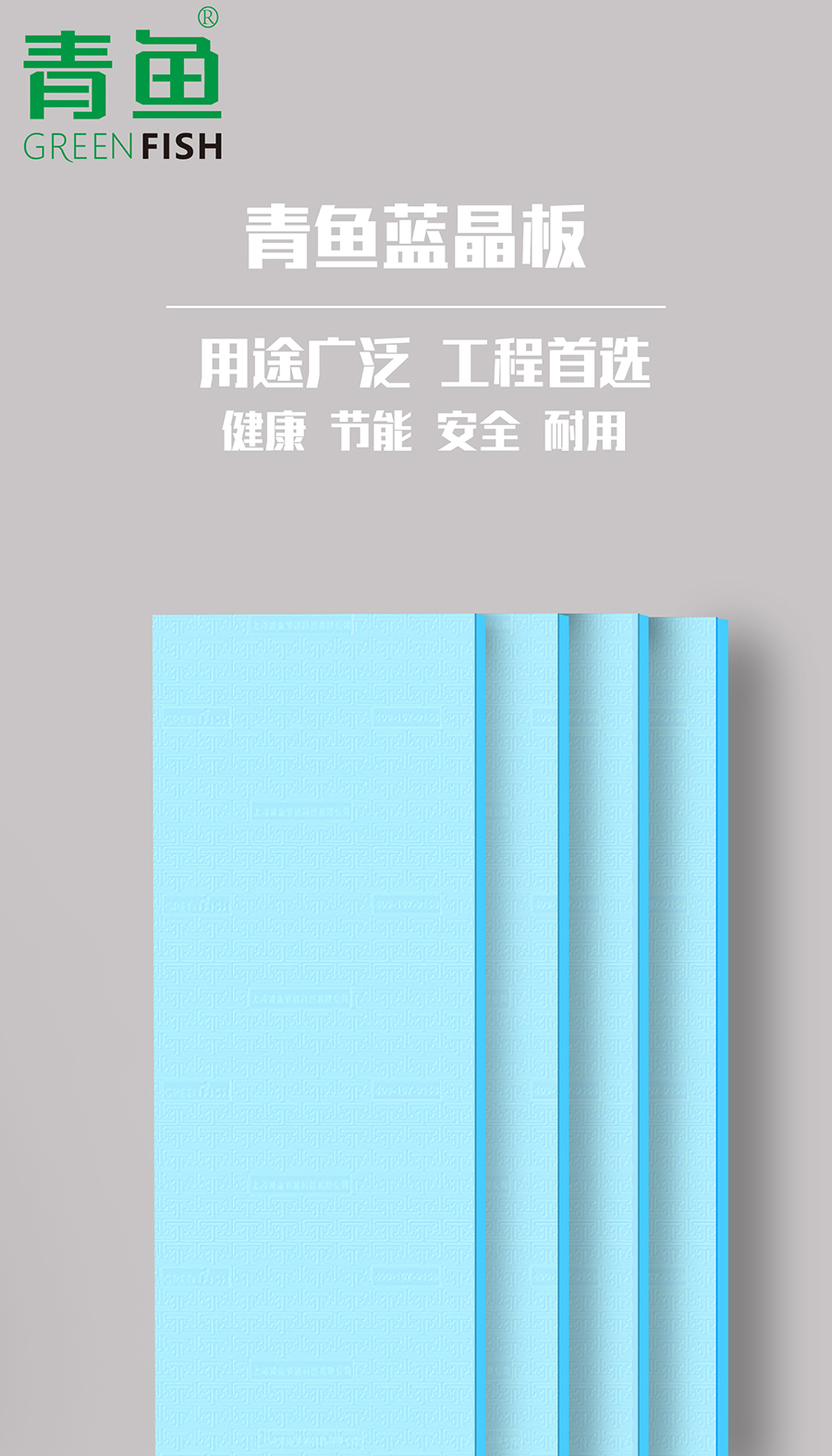

The special blue XPS insulation board for Shanghai Green fish uses polystyrene
The special blue XPS insulation board for Shanghai Green fish uses polystyrene as the foaming raw material, adopts Europe's advanced fluorine-free and bromine-free technology, without any plasticizers or chemical additives, and the product has stable molecular performance, safe and environmentally friendly. The special XPS insulation board for floor heating in Shanghai Green fish Greenfish has a continuous and uniform closed-cell honeycomb structure. The interconnected walls of each microspace are of the same thickness. The special molecular structure makes the product have very good insulation properties, high humidity resistance, extremely low water absorption, as well as good sound insulation properties, high compressive strength, good dimensional stability, and creep resistance. The product is light in quality, easy to transport, and can be cut freely, making it an ideal floor heating energy-saving insulation material.

The performance parameters of Shanghai Green fish Greenfish Floor Heating Special XPS Insulation Board are as follows:

| 性能项 | 国家标准 | 上海青鱼厂标 | 指标 |
| 长度 | 2000±5 | 1670±2 | mm |
| 宽度 | 600±5 | 600±2 | mm |
| 厚度 | 20±2,25±2 | 20±1,25±1 | mm |
| 密度 | ≥32 | ≥35 | KG/M3 |
| 抗压强度 | ≥100 | ≥200 | KPA |
| 导热系数 | ≤0.035 | ≤0.030 | w/(m.k) |
| 吸水率 | ≤1 .5 | ≤1 | %(v/v) |
| 透湿系数 | ≤3.5 | ≤3.5 | Ng/(m.sPa) |
| 燃烧性能 | B1、B2 | B1、B2 | 无 |
| 总挥发性有机化合物 | 国家无标准 | 测量值0 | mg/(m^2·h) |
| 苯乙烯 | 国家无标准 | 0 | mg/(m^2·h) |
