Green fish XPS extruded board is an ideal insulation material for cold storage construction. Its product characteristics: superior insulation and thermal insulation performance, extraordinary durability

　　The relative humidity in the cold storage is relatively large, and the relative humidity of most cold storages is above 80%. The service life of the cold storage basically depends on the durability of the insulation material in a long-term humidity environment. Therefore, the insulation material is required to have extraordinary durability and maintain excellent insulation performance under high humidity environments.

　　Excellent steam isolation performance and extremely low water absorption

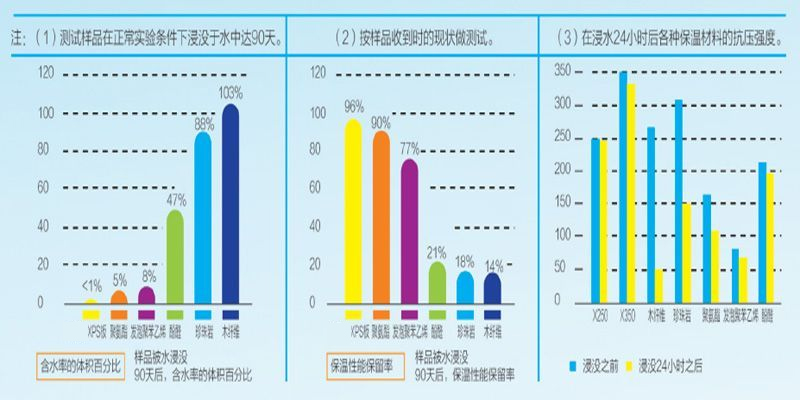

　　The Blue Fish XPS extruded plate has extremely low water vapor permeability and water absorption. In low and high humidity environments, its thermal resistance does not change much. At the same time, the low water vapor permeability greatly reduces the production of condensate inside the wall. Moisture can seriously affect the thermal resistance and other physical properties of building insulation materials. The following icons show the impact of moisture on the thermal resistance (R value) and compressive strength of building insulation materials. The water resistance of the Blue Fish XPS extruded plate can effectively reduce the impact caused by moisture.

　　Key Advantages:

　　Long-lasting, extremely low thermal conductivity

　　Good moisture resistance and freeze-thaw circulation resistance

　　Small temperature deformation coefficient, easy to divide and process on construction site, and easy to fix with the base layer

　　High compression strength, low creep for a long time, suitable for high load-bearing ground or floor

　　High water vapor permeability resistance, no decay and good durability

　　Do not emit toxic or odor-contaminated substances such as food

　　Design basis for meeting national fire protection requirements

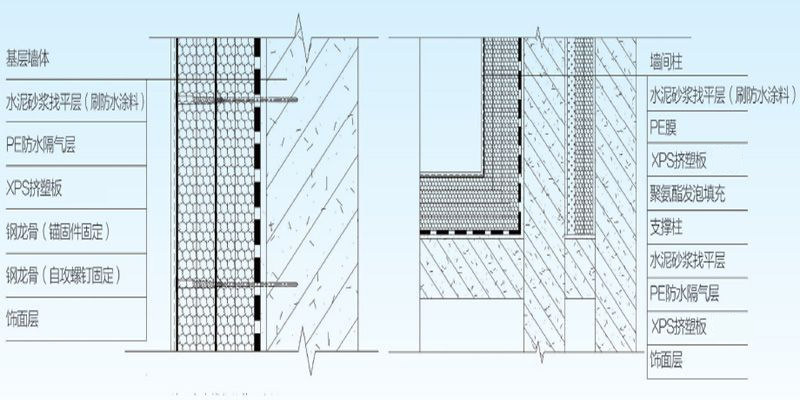

　　Schematic diagram of the wall and support column structure of Green fish XPS cold storage insulation system

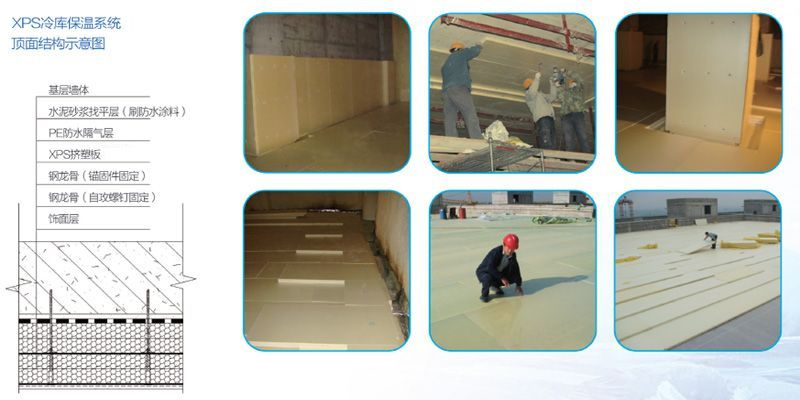

　　Schematic diagram of the top surface structure of Green fish XPS cold storage insulation system

　　Green fish XPS sandwich panel insulation system is an ideal choice for assembly cold storage construction

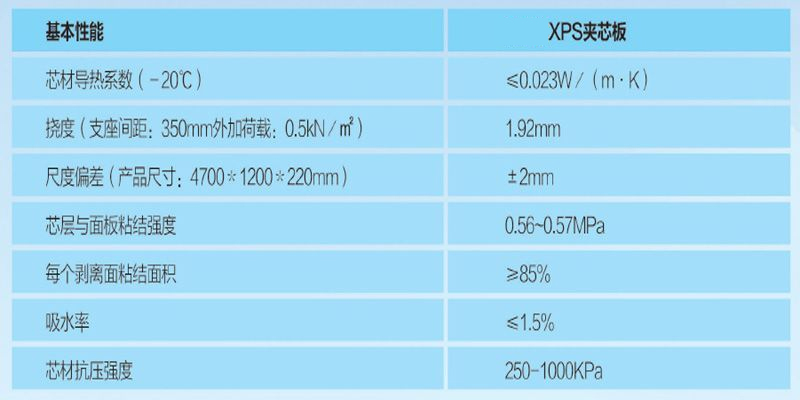

　　Main performance indicators:

　　High fire resistance: XPS sandwich board core material can reach B1 and B2 fire resistance

　　Energy saving: Bluefish XPS sandwich panel, a multi-layer composite formed by a scattered joint, ensuring that the sandwich panel has lower K value and higher thermal insulation performance

　　Protect the environment: The Green fish XPS sandwich plate does not evaporate harmful substances during use, and will not decompose or mold, and has good corrosion resistance.

　　Easy to install: Green fish XPS sandwich panel is easy to install and is not easily affected by the weather. Therefore, the installation time is 3 times faster than that of traditional building materials. At the same time, the sandwich panel building structure has a large span and the support structure is relatively simple and lightweight

　　Cost-effectiveness: Green fish XPS sandwich panel has a short construction period, saving project costs such as manpower, machinery and equipment, installation time, transportation costs and maintenance, and can significantly reduce future operating costs.
