The Green fish exterior wall interior insulation system is a new and efficient exterior wall insulation system composed of polystyrene gypsum composite insulation board and special supporting materials. This system can achieve energy saving and decorative effects of gypsum board inside the exterior wall at one time, making it a safe, reliable, cost-effective and effective building energy saving solution.

　　Green fish polystyrene gypsum composite insulation board Green fish polystyrene gypsum composite insulation board is a new composite insulation board produced by Paper Plaster Board Company with special infrared absorbers produced by Paper Plaster Board Company.

　　Product specifications The length of the Blue Fish Polystyrene Gypsum composite insulation board is 2400mm and the width is 1200mm. The thickness of the gypsum board can be 9.5mm, 12mm or 15mm.

　　Key Advantages

　　Combining the excellent performance of EPS and XPS insulation composite panels

　　The structure of the Blue Fish Polystyrene Gypsum composite insulation board is the same as that of EPS, and has excellent dimensional stability, reducing the risk of deformation of the insulation layer caused by temperature changes.

　　Can be used for direct paste veneers

　　Thermal resistance performance is similar to that of XPS insulation composite board, with a smaller thickness than EPS insulation composite board and less room to occupy

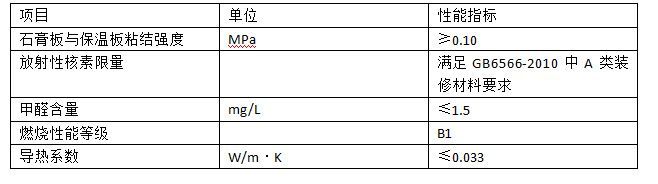

　　Technical performance of Green fish polystyrene gypsum composite insulation board

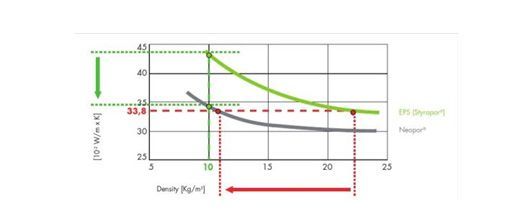

　　Comparison between EPS and XPS

　　Compared with general EPS, it has a lower thermal conductivity. This means:

　　At the same thickness, it provides higher thermal resistance and thermal insulation than conventional EPS

　　Under the same insulation effect, it can be thinner than ordinary EPS

　　Under similar requirements, the density is less than EPS, which can better save costs such as materials and transportation

　　It has better fire resistance than general EPS

　　Better dimensional stability compared to XPS

　　System Features

　　Composite insulation board factory composite molding, construction site at one time, using only the joint system. Because the composite insulation board is processed online in the factory, the quality is guaranteed. The on-site process and materials are simple, flexible and fast, easy to operate and control. The composite insulation board has a flat and straight surface, which has low installation technical requirements for installation workers. It is not affected by the climate and does not require scaffolding or other cooperation.

　　1. Indoor dry operation, continuous operation is not affected by the weather.

　　2. Excellent impact resistance.

　　3. The indoor temperature changes small, the system does not crack, and the service life is long.

　　4. Work on multiple work surfaces, which are efficient and shorten the construction period.

　　5. The operating surface has a small height and no scaffolding is required.

　　Scope of application

　　1. This system is suitable for internal insulation of various exterior walls of civil and industrial buildings, especially for energy-saving transformation of existing buildings. The base wall can be reinforced concrete, concrete blocks, concrete porous bricks or porous clay bricks and other walls. For sand aerated blocks, the masonry surface should be treated with an interfacial agent.

　　2. This system is used as internal insulation, and is suitable for buildings with a fire resistance level of one or two. The combustion performance is flammable and up to B1.

　　3. This system shall not be used in outdoor environments, and shall not be used in industrial buildings in operating environments such as vibration, high temperature, corrosive media, etc. If necessary, strengthening and protective measures should be adopted.
